Image resolution tells you how much pixel detail an image has at its final printed size. For book printing, 300 PPI at final size is the standard target for photographs and other raster images.
PPI means pixels per inch. DPI describes printer output, so when preparing artwork, PPI is the number you need to check.

| Image Type | Recommended Resolution |
|---|---|
| Color photographs | 300 PPI |
| Grayscale photographs | 300 PPI |
| Raster illustrations | 300 PPI |
| 1-bit line art | Up to 1200 PPI |
| Vector graphics | No fixed PPI |
Vector artwork does not rely on pixels, so logos, icons, line drawings, and similar graphics are better kept as Vector Graphics when possible. PDF/X workflows commonly use 300 PPI for color and grayscale images and up to 1200 PPI for monochrome raster artwork.

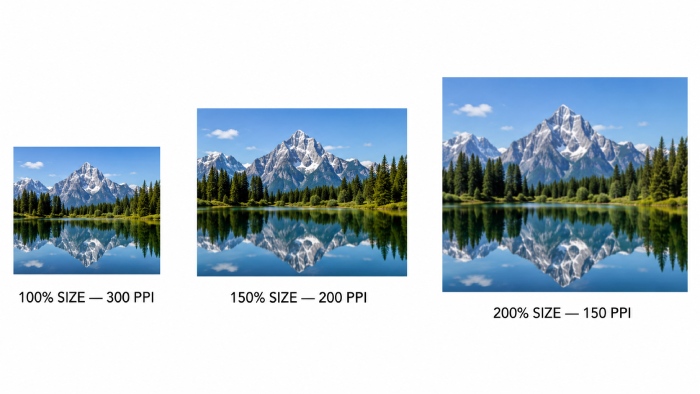

A file can be 300 PPI and still become low resolution if it is enlarged too much in the layout.
For example:
300 PPI image placed at 100% = 300 PPI
300 PPI image enlarged to 150% = 200 PPI effective resolution
300 PPI image enlarged to 200% = 150 PPI effective resolution
The larger a raster image is placed, the lower its effective resolution becomes.
This matters especially for full-page photographs and images that extend into the Bleed.

The required pixel dimensions depend on the physical size of the image.

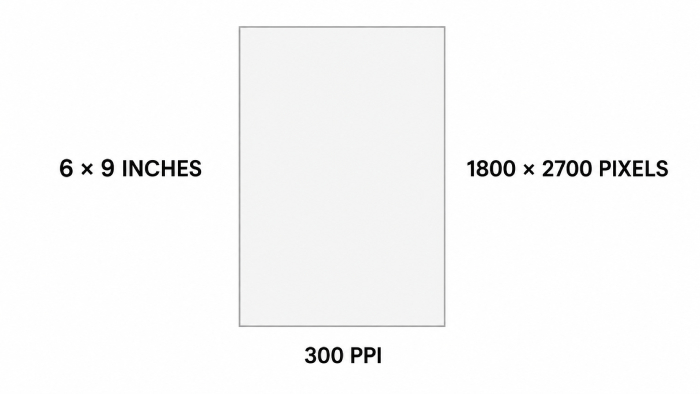

A 6 × 9 inch full-page image at 300 PPI needs approximately:
1800 × 2700 pixels
An image does not need the same pixel dimensions when it only occupies half a page. Check the size it actually uses in the layout rather than judging the file only by its total pixel count.


Open the image and choose:
Image > Image Size
Check:
Width and Height
Resolution
Pixel Dimensions
If you only want to inspect the existing image, turn off Resample. This lets you see how print size and resolution relate without adding or removing pixels.

For images already placed in a book layout, open:
Window > Links
Select the image and check Actual PPI and Effective PPI in the Link Info section.
The Effective PPI is the more useful number for printing because it reflects how large or small the image is actually placed on the page.
Changing a 72 PPI image to 300 PPI does not automatically create real image detail.
If Resample is turned off, changing the PPI only changes the calculated print size. If resampling is turned on, new pixels can be created, but missing detail cannot truly be recovered.
When the original image is too small, using a higher-resolution source is usually the better solution.
Review photographs, scanned artwork, textures, and other raster graphics at their final placed size before exporting the Print-Ready File.
Pay extra attention to images that have been enlarged, cropped heavily, or reused at different sizes. One source image can have a different effective resolution each time it appears in the layout.
