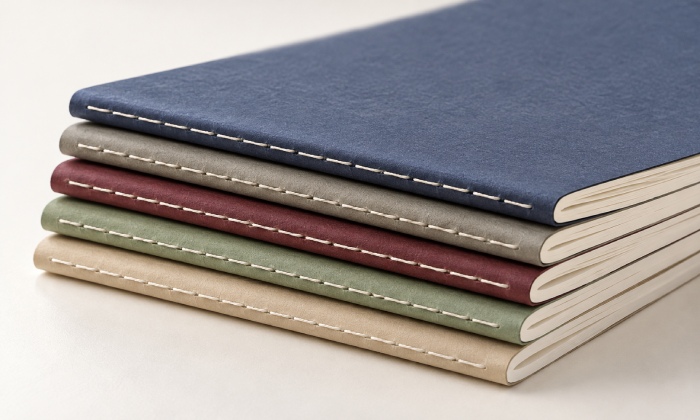

Singer Sewn Binding

Singer sewn binding uses machine stitching to join pages with thread. It suits slim books, catalogs, portfolios, notebooks and presentation pieces where the construction is part of the design.

The thread can pass through the center fold or beside the binding edge. Because these structures behave differently, the sewing position should be confirmed before layout begins.

What Is Singer Sewn Binding?

Singer sewn binding forms a continuous row of stitches through the paper and cover. Unlike metal staples, the thread can match the artwork or provide a deliberate contrast.

Paper, page count, thread and stitch settings must be planned together. The seam should remain consistent without puckering or damaging the paper around the holes.

The two main formats are center sewing and side sewing. The right choice depends on page assembly and opening requirements.

Center and Side Sewing at a Glance

Both methods require different artwork preparation. Choosing by appearance alone can result in narrow inner margins or awkward image crossovers.

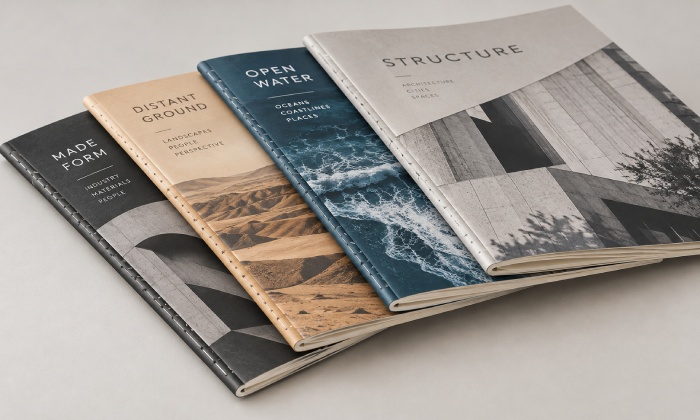

Center Singer Sewing

Center Singer sewing joins folded sheets gathered one inside another. The stitching runs through the fold, much like saddle stitching but with thread instead of wire.

Folded Page Structure

Each folded sheet creates four pages, so pagination is normally arranged in multiples of four. A separate cover may be folded around the text and sewn in the same pass.

This format is best suited to one nested section. Additional sheets increase fold bulk and push the inner pages outward, so the workable page count depends on paper thickness.

Artwork may cross the fold, but small details should not depend on perfect alignment because folding, sewing and trimming have normal tolerances.

Paper Thickness and Page Creep

Page creep is the outward movement of inner sheets in a nested booklet. Without compensation, trimming can leave their outer margins narrower.

Creep should be calculated during imposition from the paper caliper and sheet count. Keep page elements within the agreed safe area; do not shift individual pages unless the printer supplies a template.

Heavy paper increases fold bulk. Use a physical dummy for thick stock, a substantial cover or artwork close to the trim.

Side Singer Sewing

Side Singer sewing passes through the page block near the spine edge. It can join individual leaves, folded sections or another approved stack.

Stacked Page Construction

Because the pages are stacked rather than nested, side sewing avoids booklet creep and allows more flexible page grouping.

The sewing line occupies page area. Its position must leave enough paper for a secure hold without placing holes too close to the trim.

Workable thickness depends on the materials and sewing equipment. Sample a thicker block rather than approving it from page count alone.

Opening and Binding Margin

Pages pivot from the sewing line, so side-sewn books have a tighter opening. Content near the spine can be harder to see, especially on small formats or stiff paper.

Allow a wider inner margin and keep essential elements clear of the seam. Spread images may lose continuity at the binding edge. See our binding margin guide when setting the safe area.

Thread and Stitch Setup

Thread affects both structure and appearance, so specify it together with the paper and cover.

Thread Color and End Treatment

A matching thread looks restrained; a contrasting color makes the seam more prominent. Assess it on a printed sample because paper shade and ink coverage affect the result.

A thicker thread creates larger needle holes and may not suit fine or brittle stock. Confirm the available production thread before approval.

Thread ends may be trimmed short, left visible or finished as agreed. Show this detail on the approved sample.

Stitch Length and Tension

Short stitches create a denser seam and more holes; longer stitches create a more open rhythm. The right setting depends on paper strength and appearance.

Tension must hold the pages without cutting the paper or puckering the fold. A production sample should use the intended materials and stitch settings.

Prepare the Artwork

Supply the PDF as single pages in reading order unless imposed files are requested. Confirm the trim size, bleed, safe area, cover setup and page count before release.

For Center Sewing

Arrange the page count in multiples of four and allow for creep on thicker booklets. Keep critical content inside the safe area and include bleed on edge-to-edge artwork.

Avoid placing small type, faces or precise joins directly on the center fold because the stitches will interrupt some detail.

For Side Sewing

Build a wider inner margin into the layout and keep essential content clear of the sewing line. Moving the seam closer to the edge may reduce binding strength.

Check left- and right-hand pages for balanced inner margins. Part of a spread image will remain inside the restricted hinge area, so precise crossovers are not recommended.

How It Differs from Other Sewn Structures

Sewn binding methods are not interchangeable. Thread position and page assembly determine the finished structure.

Singer Sewing vs Saddle Stitch

Both methods pass through the fold of a nested booklet. Singer sewing uses a continuous thread seam; saddle stitching uses wire staples.

Their pagination and creep considerations are similar, although their production limits differ. See our saddle stitch binding guide for details.

Singer Sewing vs Smyth Sewing

Singer sewing forms one line through a center fold or binding edge. Smyth sewing joins multiple folded signatures, and the book block is then attached to a cover or case.

Smyth sewing suits thicker, multi-section books. Singer sewn binding suits slimmer work where thread can remain part of the design. See Smyth sewn vs perfect binding for a related comparison.

Approve the Finished Sample

A production sample should use the intended paper, cover, thread and stitch settings. Review alignment, tension, opening, fold quality and the distance from seam to trim.

Check content readability and image crossovers. Inspect creep and outer-margin balance on center sewing, or the inner margin and hinge on side sewing.

Record the approved thread, stitch length, sewing position, end treatment and materials so later batches can reproduce the result.
