Spiral and Wire-O Binding

Spiral and Wire-O binding both use holes punched along one edge of the pages. They allow a book to open flat and, with an exposed binding structure, fold back on itself.

Spiral binding uses one continuous coil, while Wire-O uses paired metal loops. This structural difference affects the hole pattern, book-block capacity, appearance and resistance to deformation.

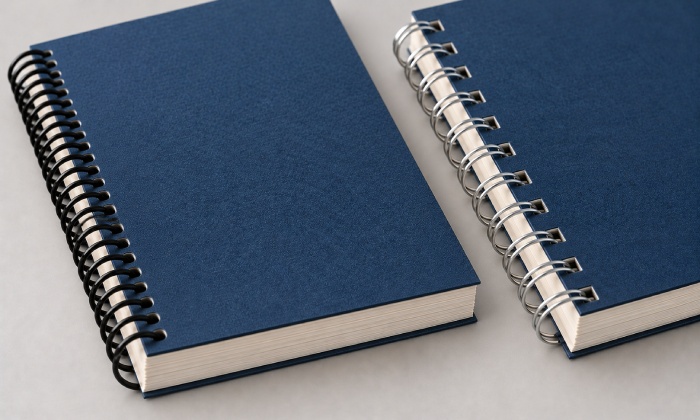

Compare the Two Binding Structures

Spiral Coil Structure

A spiral-bound book uses one continuous coil threaded through every punched hole. After insertion, both ends are cut and crimped to prevent the coil from rotating out of the book.

In commercial printing, spiral binding commonly refers to plastic coil. A single-loop metal spiral is also available, but it should be specified separately because it is not the same as double-loop Wire-O.

Plastic coil is flexible and relatively resistant to permanent deformation. It is useful when the finished book will be opened frequently or may experience pressure during transport.

Wire-O Structure

Wire-O binding uses a formed metal element with paired loops. The open loops pass through the punched pages and are then closed into a round profile.

The regular loop spacing gives the binding a more controlled appearance. Wire color can also be coordinated with the cover and other visible components.

Wire-O is more rigid than plastic coil. It maintains an orderly shape during normal use but may remain bent if the finished book is crushed or packed under excessive pressure.

Pitch and Book-Block Thickness

What Does Pitch Mean?

Pitch describes the number of holes or loops per inch along the binding edge. The punched pattern must match the selected coil or wire.

A 3:1 pitch has three holes per inch, while a 2:1 pitch has two. Plastic spiral coil commonly uses a more closely spaced 4:1 pattern, although other systems are available.

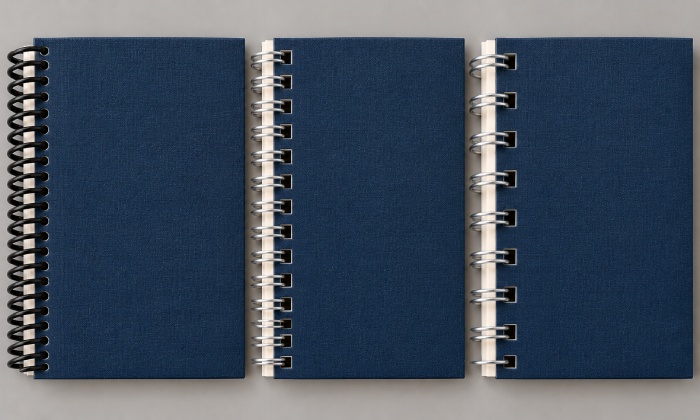

Compare Common Pitch Options

Pitch is not selected by appearance alone. It also controls which wire diameters and punching dies can be used.

Select the Diameter from Actual Thickness

Page count does not provide a reliable binding size by itself. Paper thickness, cover stock, lamination, dividers and inserts all contribute to the assembled book block.

For example, 100 pages printed on 80 gsm offset paper will be much thinner than the same page count printed on 157 gsm coated paper.

The coil or wire diameter should therefore be confirmed after the complete stack is measured. It needs enough clearance for free page turning without leaving the book block excessively loose.

Prepare the Punched Binding Edge

Keep Important Content Clear

Punching removes material from the binding edge. Text, page numbers, borders and small graphics must remain outside the punched area.

The necessary clearance depends on the hole shape, punching depth, pitch and binding diameter. Use the confirmed production template instead of applying one fixed margin to every project.

The Binding Margin should be measured from the effective punched area, not only from the finished page edge.

Handle Backgrounds and Borders Carefully

Background colors and full-page images can extend to the trim edge. Important image details should still remain clear of the holes and visible coil.

A narrow border close to the binding edge may appear uneven after punching. Small differences in hole position become more noticeable when they sit beside a straight printed line.

Do Not Build Continuous Centre Spreads

Spiral and Wire-O books do not create an uninterrupted centre spread. Facing pages remain separated by the punched edges and binding element.

Text, faces and important image details should not cross between the two pages. A visual connection can still be created through color or repeated background elements, but the central gap must be included in the layout.

Check Covers and Dividers

Covers, dividers and interior pages must use compatible hole patterns. Materials of different thicknesses should turn without catching or pulling against the binding.

Tabbed dividers need additional checking in the fully turned position. Their size and placement should not interfere with the cover, adjacent tabs or coil.

Cover Structures

Exposed Binding

In a standard exposed structure, the front cover, pages and back cover are punched along the same edge. The coil or wire remains fully visible.

Card covers, polypropylene covers and separate rigid boards can be used when their thickness suits the punching system. Each component turns independently around the binding element.

Exposed binding provides the most predictable flat opening and 360° folding because no outer spine restricts the movement.

Rigid Covers

A rigid spiral or Wire-O book normally uses separate front and back boards rather than a conventional one-piece casebound cover. The binding edge must be constructed so that the boards can rotate without splitting or resisting the wire.

The board thickness, wrapped edge and punched strip should be checked together. A rigid cover that is too close to the binding element can make the first and last pages difficult to turn.

Hidden Wire-O

Hidden Wire-O uses an outer cover structure to conceal all or part of the metal wire. It gives the book a more continuous exterior while retaining the page-turning function of Wire-O.

The cover may use a wrapped spine section, concealed binding strip or separate hinged panels. The exact structure must be confirmed before the cover artwork is prepared.

A concealed cover can limit full folding when the outer spine is too tight. The sample should confirm the actual opening movement rather than assuming it will behave exactly like exposed Wire-O.

Opening and Page Movement

Flat Opening

Both exposed spiral and Wire-O books can remain open without forcing a glued or sewn spine. They can also fold back so that only one page occupies the working area.

This is useful for books intended for writing, instruction or desk reference. It does not mean that the two pages form a seamless flat spread.

Allow Space for Turning

Heavy pages and rigid dividers need more room to travel around the binding element. A diameter that is too small can restrict movement and place stress on the holes.

An oversized diameter creates the opposite problem. The pages may shift excessively, and the closed book can feel loose.

The sample should be checked at the front, middle and back because page movement can differ across the book block.

Binding Quality

Punched Holes

The holes should be clean and consistently aligned through the covers and interior pages. Rough edges, torn lamination or changing distance from the page edge remain visible after binding.

Heavy laminated covers require particular attention. The surface film and cover stock should not crack or separate around the holes during repeated turning.

Spiral Coil Ends

The coil should pass smoothly through every hole and maintain an even diameter along the complete binding edge.

Both ends must be cut and crimped without sharp projections. Poorly finished ends can catch on packaging or allow the coil to unwind.

Wire-O Closure

Wire-O loops should remain parallel and close to a consistent round shape. The closing seam should also stay even along the full length.

An under-closed wire may leave gaps that allow pages to move out of position. Excessive closing can flatten the loops and restrict page turning.

Handling and Packing

Plastic coil can flex under pressure and normally returns closer to its original shape. This makes it more forgiving when books are handled or transported frequently.

Wire-O needs greater protection because a crushed metal element may retain the deformation. Carton quantity and product orientation should prevent other books from placing concentrated pressure on the wire.

For wall calendars, the wire, hanger and thumb cut must also be aligned. These components should be checked together instead of approving the Wire-O element separately.

Approve the Finished Sample

Use the Intended Materials

The sample should use the actual interior paper, cover, dividers and inserts. Changing one of these components may alter the book-block thickness and require a different binding diameter.

Check page turning, punched margins, cover movement and the position of the binding element. A loose stack of paper cannot confirm these finished details.

Record the Complete Specification

For repeat production, retain the approved sample and record the pitch, diameter, color, hole pattern and cover structure.

A description such as “black spiral” or “silver Wire-O” does not identify enough information to reproduce the same result. The production reference must describe the complete binding system.
