CMYK Process Color for Printing

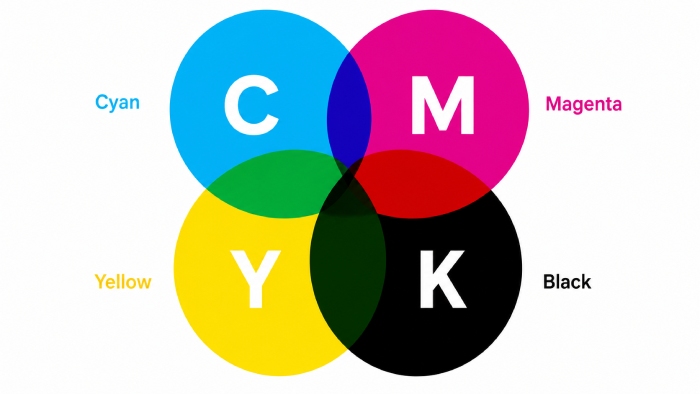

CMYK process color is the standard color system used for most full-color printing. It creates images by combining four ink colors:

• C — Cyan

• M — Magenta

• Y — Yellow

• K — Black

Different percentages of these inks are layered during printing to reproduce colors, images, and graphic elements on paper.

How CMYK Printing Works

Before printing, a full-color artwork is separated into four color channels: cyan, magenta, yellow, and black.

Each ink contributes different parts of the final image:

• Cyan controls blue and green tones.

• Magenta creates red and purple tones.

• Yellow adds warm colors and brightness.

• Black strengthens shadows, contrast, and fine details.

The final color is created when these four ink layers are printed together.

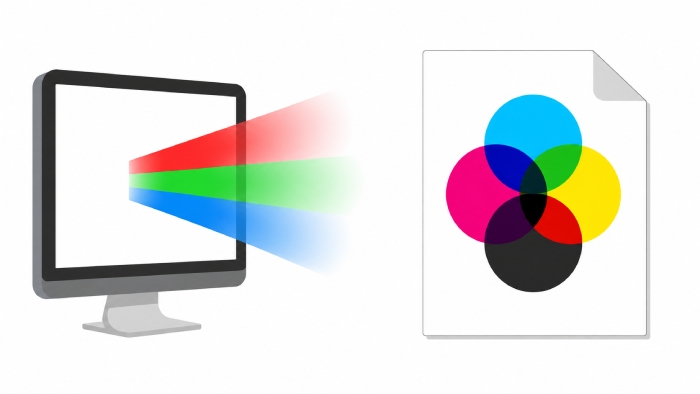

CMYK and RGB Color Modes

RGB and CMYK are used for different purposes.

RGB is mainly used for screens, cameras, and digital displays, while CMYK is designed for printing with physical inks.

Many images start as RGB Color because they come from cameras, websites, or digital design files.

When RGB artwork is converted to CMYK, some colors may shift, especially bright blues, greens, and neon-like colors. Check important colors after conversion before preparing the final Print-Ready File.

Preparing Artwork in CMYK

Before sending files for production, check that images and graphic elements use the correct color mode.

Common elements that may need review include:

• Photos placed from digital sources

• Imported graphics

• Logos and brand colors

• Background colors and large color areas

After conversion, review the artwork at the final size to make sure important details and colors remain suitable for printing.

For images, also check the final quality requirements in Image Resolution.

100% Black and Rich Black

Black can be created in different ways depending on where it is used.

100% K black uses only black ink and is usually suitable for:

• Body text

• Small text

• Fine lines

• Small graphic details

Rich black combines black with additional CMY inks to create a deeper black appearance. It is often used for:

• Large black backgrounds

• Large solid areas

Using rich black for small text is not recommended because multiple ink layers can create slight registration differences and affect sharpness.

CMYK for Fine Details

Small text and thin lines should normally use a single ink color whenever possible.

For example:

• Small black text → 100% K

• Fine black lines → 100% K

Using multiple CMYK colors for small elements increases the chance of slight misalignment between ink layers.

For detailed artwork, also check the recommended Line Thickness.

CMYK and Special Colors

CMYK can reproduce most standard colors used in printing, but some projects require additional color options.

Examples include:

• Specific brand colors

• Metallic effects

• Very bright colors

These may require spot colors, Pantone colors, or special inks depending on the project requirements.

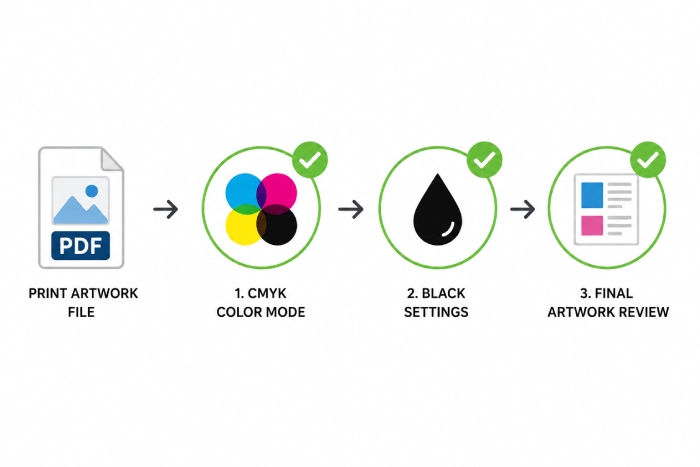

Check CMYK Before Final Export

Before submitting the final artwork, check:

• Images are converted to the correct color mode.

• RGB elements are reviewed and converted when needed.

• Black settings are appropriate for different elements.

• Special colors are clearly identified.

The final printed appearance can also be affected by paper type, surface finish, and printing conditions. Review colors based on the selected material and approved artwork before production.
