Headbands and Ribbon Bookmarks

Headbands and ribbon bookmarks are small components used mainly in case-bound books. Headbands finish the visible ends of the spine, while a ribbon bookmark provides a practical page marker.

They are separate from the method used to bind the pages. Their position and dimensions should be confirmed together with the book-block size, spine shape and cover construction.

Headbands and Ribbon Bookmarks Compared

Both components are optional and can be specified independently. A book may use head and tail bands without a ribbon, or include one or more ribbons without visible bands.

How Headbands Finish the Spine

Position and Construction

The top of the book is the head and the bottom is the tail. The upper component is technically the headband and the lower one the tailband, although “headbands” is commonly used for both.

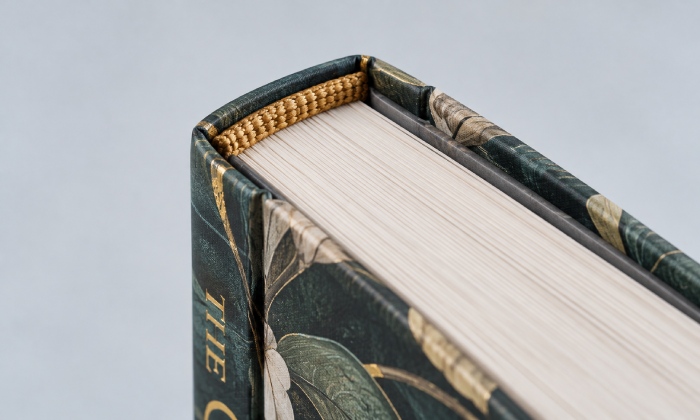

A commercial headband has a visible woven edge attached to a flat textile tape. This tape is cut to the width of the book-block spine and glued across its upper or lower end.

The woven edge should follow a square or rounded spine evenly. It must sit within the cover overhang without being crushed or projecting beyond the case.

Decorative Rather Than Structural

Traditional hand-sewn endbands can form part of a historical binding structure. Modern commercial headbands are normally prewoven components added after the book block has been bound.

They conceal exposed lining or adhesive and give the spine ends a cleaner finish. They do not join the signatures or turn an adhesive-bound book into a sewn book.

The presence of headbands therefore does not identify the page-binding method. Sewing, adhesive binding and case construction should be confirmed separately in the Book Binding Guide.

Color and Proportion

Headbands are available in solid colors and striped combinations. Their color may match the cover and endpapers or introduce a controlled contrast.

The visible woven edge should suit the book format. A pronounced band can look oversized on a small book, while a very fine profile may become hidden inside the overhang of a large case.

Color should be approved from the available physical reference. Thread texture and sheen can make a finished band appear different from an on-screen color.

How Ribbon Bookmarks Are Used

Attachment Position

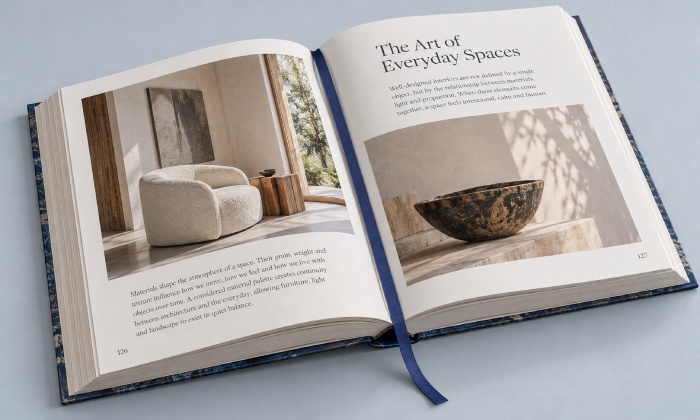

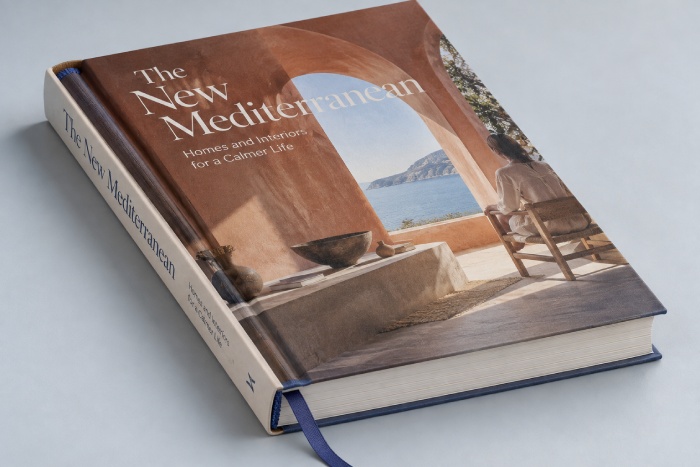

In commercial binding, one end of a ribbon bookmark is fixed near the head of the book-block spine before casing-in. The free length passes between the pages and extends beyond the tail when marking a page.

The ribbon is not attached to the headband or sewn through the printed pages. Its anchored section should lie flat beneath the spine lining without producing a visible lump.

Width, Length and End Finish

Ribbon width should be proportionate to the finished book. An excessively wide or stiff material can add bulk between the pages or leave an impression on lightweight paper.

The finished length is calculated from the trimmed book-block height and the required projection below the page edge. It should provide a practical grip without extending excessively beyond the book.

The free end may be cut straight or diagonally and sealed where the material requires it. This treatment should prevent fraying without leaving a hard edge that can mark the pages.

Multiple and Printed Ribbons

A single ribbon suits most novels, journals and general publications. Planners, Bibles and reference books may use two or more markers when readers need to retain several positions.

Multiple ribbons can use different colors for identification. Their anchored ends should not be stacked in one place, and the finished book should close without a bulge at the head.

Plain stock ribbons do not require artwork. If text, a logo or a repeating detail will be printed, provide a separate file showing the artwork size, printing side, repeat and reading direction.

The usable print area is narrow, so fine lettering and thin lines should be tested on the selected material. Orientation must be checked while the ribbon hangs naturally from the bottom of the book.

Match the Components to the Book

Cover, Endpapers and Page Edges

Headband and ribbon colors can coordinate with printed paper, cloth or PU covers. The Hardcover Cover Materials guide explains how these surfaces affect the appearance of a finished case.

They can also match or contrast with book endpapers. For an edition with sprayed edges, compare all components on the same physical sample rather than approving each color separately.

Compatible Book Structures

Headbands are most common in Case Binding, where the separate case leaves the spine ends visible. They may also be used in a suitable flexible-case construction.

A conventional perfect-bound paperback has a cover attached directly around the spine and normally does not use the same headband arrangement. The book structure should therefore be confirmed before these components are added to the specification.

Approve the Finished Sample

Check that the head and tail bands follow the spine evenly, have clean cut ends and show no excess adhesive. Their visible profiles should be centered and consistent at both ends of the book.

Confirm that each ribbon is securely anchored, correctly oriented and cut to the approved length. It should lie flat between the pages, and its finished end should remain clean after repeated handling.

For multiple markers, open and close the book at several positions to confirm that the ribbons separate easily and do not create excessive thickness. The approved sample should remain the reference for color, position and finished dimensions.
