A box can look right on screen and still look wrong after it is folded. The lid may face the wrong way, a product name may sit across a crease or part of the design may disappear into a glue seam.
The solution is to place the artwork on the factory-approved box dieline for the actual structure and review it as a finished three-dimensional package. The template should stay at 100% scale and should not be redrawn to fit an existing design.
This article covers what must be confirmed before packaging artwork is approved. It does not explain how the box structure itself is engineered.
The production dieline can only be finalized after the box size, material and opening style are confirmed. These details determine the panel widths, flaps, folds and joining areas.
If the dimensions are still being discussed, settle them first with our How to Measure a Box guide. If the project is still choosing between a folding carton and a rigid setup box, use our rigid box vs folding carton comparison before preparing artwork.
A cardboard box dieline from an older order or a similar package is not a safe substitute. Scaling it changes the flaps, slots, glue areas and clearances as well as the visible panels.
When the finished size, board, window or closing method changes, request a revised box dieline and move the design onto it. The artwork should follow the structure, not force the structure to follow an old layout.
A folding carton is usually shown as one connected blank. A rigid box may need separate templates for the lid wrap, base wrap, inner lining, sleeve or other components.
Before design begins, confirm which visible surfaces are included. This prevents the front panel from being finished while the sides, inside lid or base are left without approved artwork.
The line colors vary between suppliers, so use the legend on the supplied file rather than assuming that one color always means cutting or folding.
| Dieline Area | What to Check |
|---|---|
| Cut line | Backgrounds reach beyond the edge and important content remains inside |
| Crease or fold line | Small text, barcodes and precise details do not sit on the bend |
| Glue flap | No required content disappears into the joined area |
| Window or cutout | The opening reveals the intended part of the product or insert |
| Finishing area | Foil, Spot UV or embossing appears on the correct visible panel |
The structural lines are guides, not part of the printed design. Keep them separate from the artwork and do not move them while adjusting the layout.

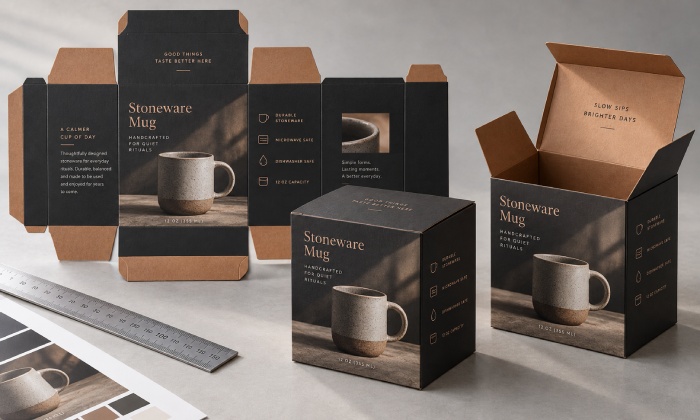

The flat file is only a production view. The finished box is viewed closed, opened and from several directions.
Identify the front panel, top and opening direction before placing the main product name or image. Then check the back, sides and base in relation to that front.
Artwork on a top flap may need to rotate relative to the front panel to appear upright when the box is closed. An inner lid is viewed after opening and may face the opposite direction from the outer lid. These positions should be judged from an assembled reference, not from the flat sheet alone.
Inside and outside artwork share the same folds but are viewed from opposite sides. Simply mirroring the outside design does not guarantee a correct inside layout.
When both surfaces are printed, identify them clearly and confirm which artwork should appear at each stage of opening. Our fold-line guide explains how the inside and outside files relate to the same structural positions.
Background colors and non-critical parts of an image can continue around a corner. Product names, faces, small lettering, QR codes and thin borders should stay on one flat panel.
A crease changes the viewing angle and interrupts fine detail. If a picture must continue across two panels, keep its focal point away from the fold and judge the result on an assembled sample.
A glue flap may be covered by another panel or hidden inside the box. Do not place required information or the center of a wraparound image there.
Where the template marks a non-printing glue area, leave it clear. This is a production requirement already built into the approved packaging dieline, not an extra space available for design.
The window position should be checked with the product and insert together. An opening that looks balanced in the flat file may reveal the wrong part of a bottle, jar or product set after packing.
Avoid thin printed frames that depend on perfectly equal spacing around the cutout. Our die-cutting guide covers the production limits for windows and custom cut shapes.
Background colors and images that reach a cut edge must continue to the bleed boundary shown on the project template. Follow the actual cut shape, including a window when bleed is marked around it.
Important content needs protection from more than the outside edge. It should also stay clear of creases, notches, slots, windows and glue seams. A barcode that sits inside the outer margin can still become unusable if it wraps around a corner.
The general principles are already covered in our printing bleed and safe-area guides. The approved box dieline remains the final reference for the project.

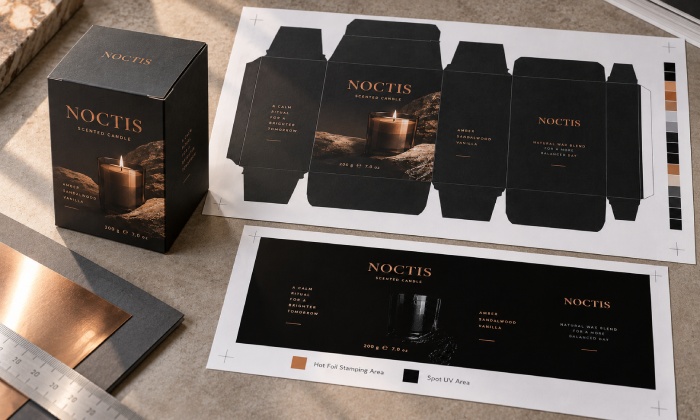

Foil, Spot UV, embossing, debossing and white ink require separate masks aligned with the printed design. The main artwork shows the printed appearance; the mask tells production exactly where the additional process belongs.
Make sure the supplied design files include a separate mask for every selected finish before the artwork is approved.
Our prepress artwork guide explains the file relationship. More detailed limits are covered separately under foil stamping and Spot UV.
Start with the current box dieline for the confirmed structure. Keep it at full scale, place important artwork on stable visible panels and review every surface in the way the finished box will be opened.
When the structure changes, request a new template. When a finish is added, provide its separate mask. These two rules prevent most artwork problems before proofing and give Caihong Paper Products a clear basis for producing your custom packaging from supplied files.
