Total Ink Coverage in Printing

Total ink coverage is the combined percentage of cyan, magenta, yellow and black in one area of a file. It is also called total area coverage, or TAC.

For example:

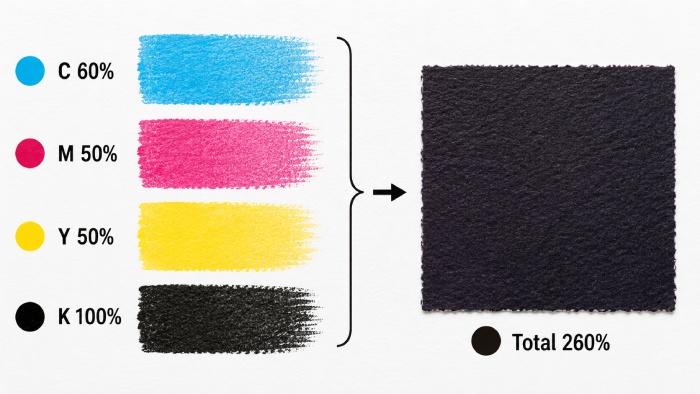

C60 + M50 + Y50 + K100 = 260% total ink coverage

The highest possible value is 400%, but that is far too much for normal printed artwork.

There Is No Universal Ink Limit

The safe limit depends on the printing process, paper and output profile. Many commercial printing specifications fall between approximately 240% and 320%, but the correct number must match the actual production conditions.

Coated paper usually handles more ink than uncoated paper because the ink stays closer to the surface. Uncoated and lightweight papers absorb more ink, so they often need a lower limit. Digital presses may use different limits from offset presses.

The selected ICC Color Profile normally controls total ink coverage during CMYK conversion. Converting with the wrong profile can produce separations that do not suit the paper or press.

What Happens When Ink Coverage Is Too High?

Too much ink does not automatically create a deeper or better-looking color. Once the paper and press reach their practical limit, extra ink can reduce print quality.

Problem	What You May See
Slow drying	Ink remains wet longer than expected
Set-off	Wet ink transfers onto the back of the sheet above it
Blocked shadows	Dark details merge into solid areas
Muddy color	Dark areas lose contrast and clarity
Uneven printing	Heavy ink builds appear patchy or unstable
Finishing problems	Wet or heavy ink affects folding, binding or lamination

Controlled and excessive ink coverage on printed paper

Where Excess Ink Coverage Comes From

Dark Images and Black Builds

Dark photographs often contain high values in all four CMYK channels. Shadow areas may look detailed on screen but print as flat, heavy patches when their combined values exceed the production limit.

Rich black backgrounds can create the same problem. A controlled CMYK build may produce a deeper black, but adding high values to every channel wastes ink and increases drying risk. The correct black build should follow the intended CMYK Process Color specification.

Registration color is especially dangerous inside artwork because it uses 100% of every process color, creating 400% coverage. It is intended for registration marks, not text, backgrounds or design elements.

Color Conversion

An RGB image may develop excessive ink coverage when converted through an unsuitable CMYK profile. Existing CMYK artwork can also change if it is converted again to another profile.

Repeated CMYK conversions may alter black generation, neutral tones and shadow detail. Instead of manually lowering random color channels, correct the source image and convert it once using the confirmed output profile.

Overprinted Areas

Objects that look acceptable separately may create excessive coverage when they print on top of each other. This can happen with transparent effects, duplicated elements or incorrect Overprint settings.

Dark gradients also need attention because their heaviest point may contain more ink than expected, even when most of the Gradient Printing area is within the limit.

Check the Final PDF

Total ink coverage should be checked in the exported print PDF, not only in the original design file. PDF output preview tools can identify areas that exceed a chosen percentage.

If excessive coverage appears, first find its source:

Correct dark images in the original image file.
Replace uncontrolled black builds with the approved CMYK values.
Remove registration color from artwork.
Check overlapping and overprinted objects.
Repeat the conversion using the correct output profile.

The final ink limit should be confirmed during the Prepress Artwork review because the acceptable value depends on the press and paper selected for the job.

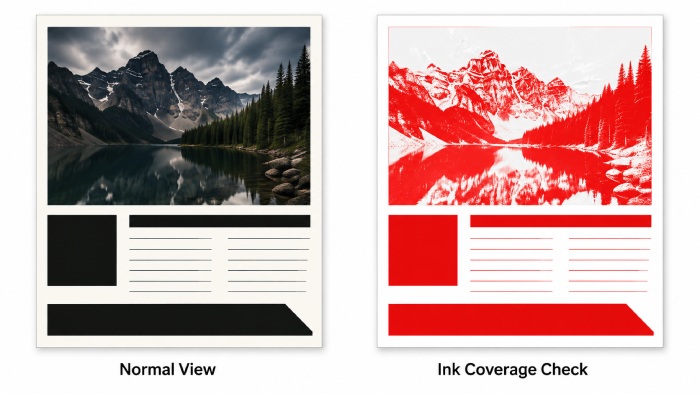

High total ink coverage highlighted during a print PDF check
